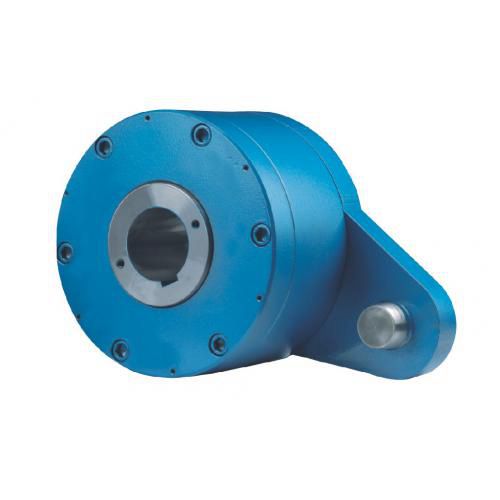

NFZ型逆止器的基本尺寸和參數(shù)：
規(guī)格 | 額定逆止力 矩TeN.m | 孔徑范圍 d mm | 逆止器安裝 軸伸范圍mm | 最高轉(zhuǎn)速 Nf r/min | 非接觸轉(zhuǎn) 速r/min | 安裝尺寸 | ||||||||||
D | L | L0 | H | h0 | A | A1 | A0 | B | B1 | B0 | ||||||
NFZ10 | 1000 | 32-50 | 110-45 | 450 | 1500 | 190 | 162 | 36 | 215 | 12 | 200 | 160 | 14 | 95 | 60 | 20 |
NFZ16 | 1600 | 45-60 | 110-150 | 450 | 1500 | 208 | 167 | 38 | 225 | 12 | 200 | 160 | 14 | 95 | 60 | 20 |
NFZ25 | 2500 | 50-70 | 115-155 | 425 | 1500 | 230 | 172 | 43 | 250 | 16 | 250 | 200 | 18 | 120 | 75 | 25 |
NFZ40 | 4000 | 60-80 | 120-166 | 425 | 1500 | 245 | 183 | 48 | 265 | 16 | 250 | 200 | 18 | 120 | 75 | 25 |
NFZ63 | 6300 | 70-90 | 125-180 | 400 | 1500 | 260 | 196 | 56 | 330 | 20 | 380 | 330 | 22 | 160 | 100 | 34 |
NFZ80 | 8000 | 80-100 | 130-185 | 400 | 1500 | 275 | 200 | 56 | 345 | 20 | 380 | 330 | 22 | 160 | 100 | 34 |
NFZ100 | 10000 | 90-110 | 140-220 | 400 | 1500 | 295 | 238 | 68 | 375 | 22 | 400 | 350 | 22 | 170 | 110 | 34 |
NFZ125 | 12500 | 100-130 | 160-260 | 375 | 1000 | 360 | 273 | 84 | 435 | 25 | 450 | 280 | 26 | 180 | 125 | 36 |
NFZ160 | 16000 | 110-140 | 165-260 | 375 | 1000 | 360 | 273 | 84 | 435 | 25 | 450 | 380 | 26 | 180 | 125 | 36 |
NFZ200 | 20000 | 120-150 | 175-260 | 350 | 1000 | 405 | 275 | 87 | 465 | 25 | 450 | 380 | 26 | 180 | 125 | 36 |
NFZ250 | 25000 | 130-160 | 180-270 | 250 | 1000 | 440 | 285 | 92 | 500 | 25 | 450 | 380 | 26 | 180 | 125 | 36 |
